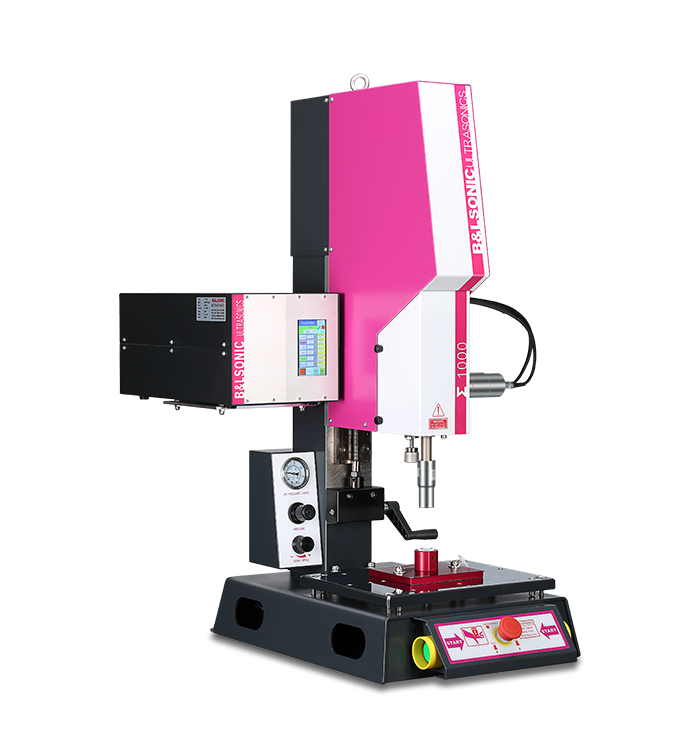

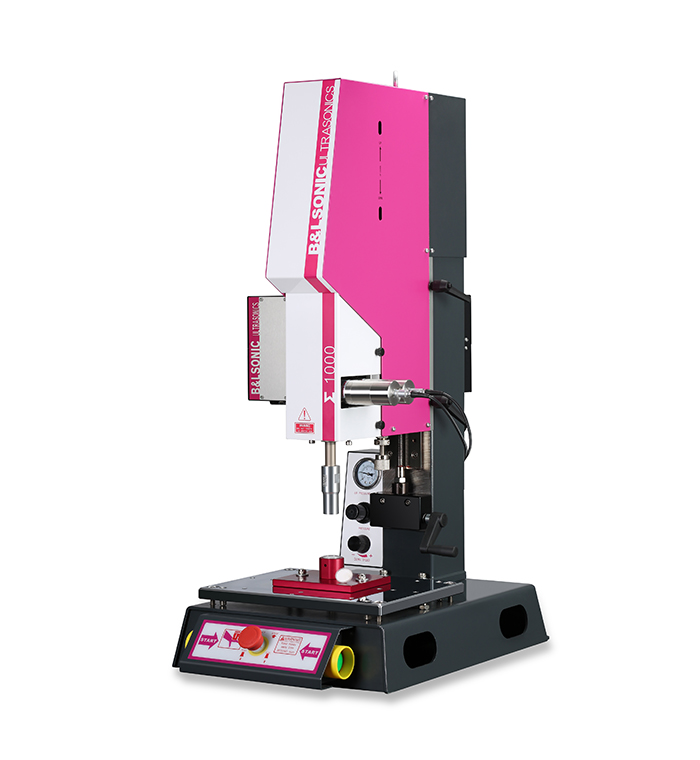

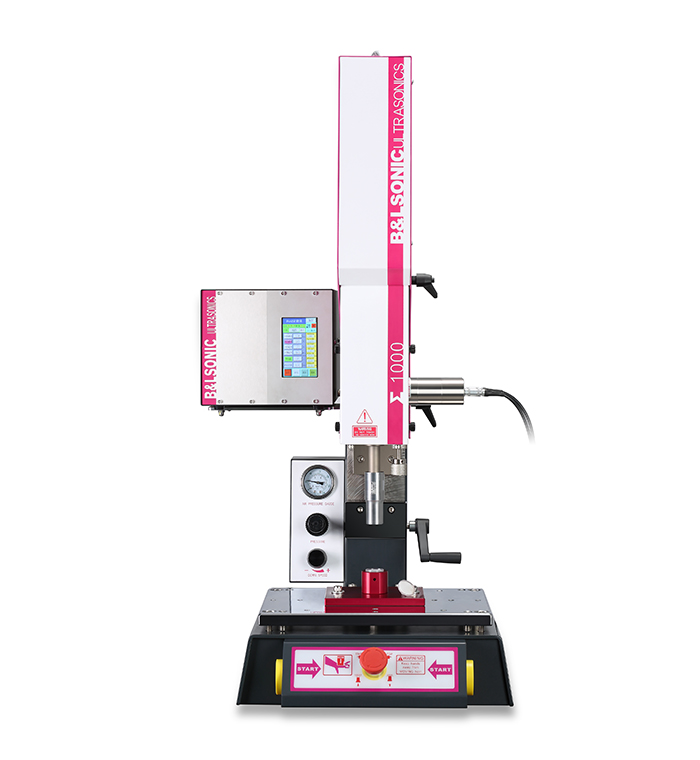

Σ1000 TSP Ultrasonic Torsion Welding Series

The Ultrasonic Torsion Welding Machine Σ1000TSP Series is a complete ultrasonic welding device that integrates ultrasonic digital generators and controllers with ultrasonic welding presses.
The Σ1000TSP series has a variety of welding modes to meet customers' more stringent welding requirements.
Advanced Control Machine
Color touch screen
Chinese and English use interface.
Germany designed digital ultrasonic generator, which can accurately adjust and stabilize various parameters, can safely protect the control box
Electronic pressure measuring device
Precision electronic ruler for welding depth control with accuracy of ±0.01mm
4 Different trigger modes
5 Different welding modes (time, energy, maximum power, relative position, absolute position welding mode)
Welding parameter data storage
Ultrasonic amplitude adjustment 50%-100%
Ultrasonic frequency automatic tracking
Quality management function (optional)
Printer output function (optional)


        Application field

         ◎ Welding and fusion forming thermoplastics.

           ◎ Cut'n'seal processes for textiles, fleeces and foils.

           ◎ Metal welding connections: point and circumferential welding geometry.

           ◎ Low-vibration welding of electronic components.

           ◎ Producing the peel-off function, e.g. aluminium covers.

           ◎ Seal welding aluminium packaging without plastic coating.


Technical Parameter
NameΣ1000TSP
Frequency20kHz 35kHz
Power 1000W 1000W
Pressure 1000N 1000N
Power Input

1000W/5A AC 220V ±10% 50/60Hz

1000W/5A AC 220V ±10% 50/60Hz

Electric Box Size 420 x 211 x 185mm 465 x 211 x 185mm
Electric Box Weight 10kg 10kg
Machine Size 815 x 478 x 1182mm 815 x 478 x 1182mm
Machine Weight 90kg 90kg
